AT-20HD

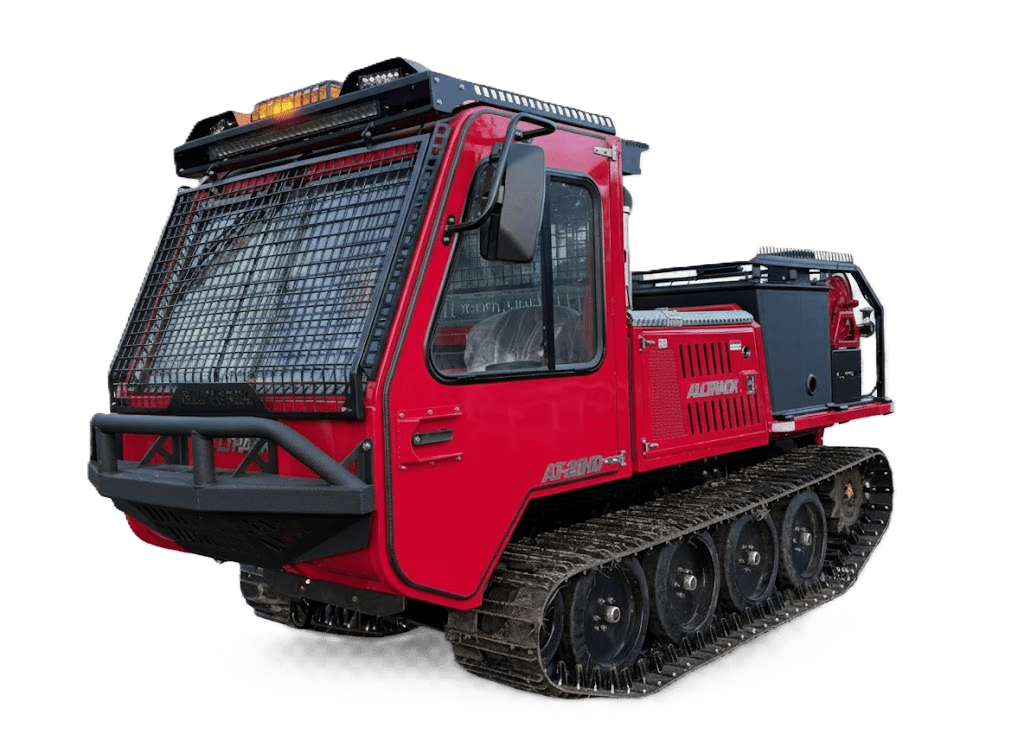

ALLTRACK AT-20HD

is a compact tracked vehicle that is small on size, and big in versatility. At only five feet wide, and capable of zero radius turns, it fits in areas that other tracked and wheeled all-terrain vehicles fail to reach. This machine is built to the same heavy-duty standards that all of our vehicles are built to and is made to last. Requires little maintenance as there are no chains or tires to go flat, and no clutches or belts to be adjusted. The ALLTRACK AT-20HD is large enough to handle 3500 Lb. loads. It comes with a heated cab, is easy to maintain and has a low environmental impact.

Payload - 3500LBS , 1.75 Ton

Request More Info
parallax background

Features


Engine

HATZ 4H-50 Tier 4 F Turbo Diesel rated @ 74hp


Drive Train

Eaton variable displacement piston pumps, Poclain two speed wheel motors


Optional equipment

The AT-20HD can be equipped with Drills, Water Tanks, Methanol tanks, Fire fighting equipment, Plows, Tool Boxes, Cable Winders, Post Pounders, Snow grooming equipment, and virtually any other truck mounted equipment.


Controls

Dual hydraulic joysticks


Running Gear

Urethane coated drive sprockets, solid rubber load wheels


Frame

Formed high strength steel toboggan style frame


Tracks

Heavy duty tracks with nylon reinforced rubber belts and steel cross links or rubber cleated track.


Cab

Fully equipped two passenger ROPS/FOPS steel cab. Equipped with windshield wipers, Defrosting Fan, Cab Heater, Suspension Seats, Sliding windows, Sound insulation and escape hatch. (Single, Crew, or Bus style cabs also available)


Suspension

Torsion Axle


Additional Standard Features

Heavy duty bumper, work lights, tow sling, track repair kit, spare tire and pintle hitch.


The AT-20HD’s compact size and powerfull drive make it ideal for Search and Rescue, Mineral and Oil exploration, Forest Fire fighting, Cell tower service, Pipeline maintenance, and virtually any other industry where a compact vehicle that is capable of traveling over extreme terrain is needed.

Gallery

Specifications


Payload

3500lbs. / 1588 kg


Track Width

16”or 22"


Gross Weight

9 500 lbs. / 4309 kg


Drive

Hydro-static


Suspension

Rubber Torsion Axle


Dry Weight (approx)

6000lbs. / 2722 kg


Turning Radius

0”/ 0 CM (counter rotation)


Steering

Dual Ergonomic Hydraulic Joysticks


Fuel

Diesel


Horsepower

74HP


Width

60” with 16” track 72” with 22” track


Length

162” / 4.1M


Height

82” / 2 M


Deck size

60” x 60”


Deck height from ground

32”


Ground pressure (loaded)

2.7PSI with 16" 2.0 PSI with 22"


Max speed

14 Mph / 22.5 km/h


Cab Seating

2 (crew cab or single cab available)


Max Gradient

Side 40% Front 60%


Fording Depth

30”/ .75 M
