AT-50HD

ALLTRACK AT-50HD

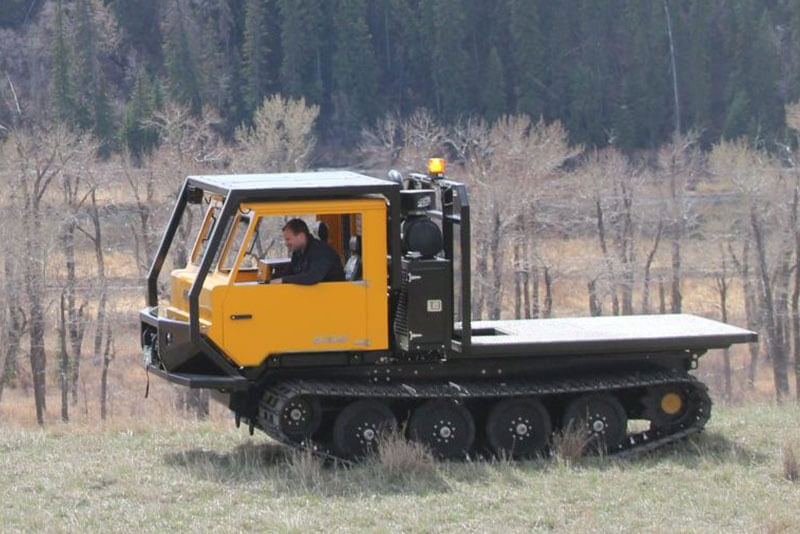

is a multi-function tracked vehicle suitable to perform many tasks in any kind of terrain. With a reliable hydro-static transmission and powerful 145HP Tier 4 F JCB turbo Diesel, the AT-50HD tracked carrier will get you where you need to go, when you need to be there. The AT-50HD tracked carrier is easily transported behind a one ton pickup making it the ideal rapid response unit for remote environmental, disaster, and emergency work.

The AT-50HD's powerful drive and 7,500LB payload capacity make it well suited for Mineral and Oil exploration, Forest Fire fighting, Cell tower service, Pipeline maintenance, Environmental and Geo-technical drilling, Rig Support, and virtually any other industry where extreme mobility is necessary.

Payload - 7500LBS , 3.75 Ton

Request More Info


Features


Engine

145 HP, 413 lb-ft JCB Tier 4 F Turbo Diesel


Controls

Single or Dual Joystick


Drive Train

Linde variable displacement piston pumps, Poclain 2-speed wheel motors with integral parking brake


Cab

Fully equipped two passenger tilting aluminum cab. Equipped with wipers, Defrosting Vents, Cab Heater, Suspension Seats, Sliding windows, Sound insulation, power inverter and escape hatch. ISO ROPS /FOPS Structure Available


Running Gear

Urethane coated drive sprockets, Solid Rubber Tires


Frame

Formed high strength steel toboggan style frame


Suspension

Independent Rubber Torsion Suspension


Tracks

Heavy duty tracks with nylon reinforced rubber belts and steel cross links. Allseason low profile tracks in narrow and wide configuration, as well as an optional wide winter track. 22" rubber cleat enviro track also available for operating on hard surfaces and roadways


Optional equipment

The AT-50HD can be equipped with Drills, Water Tanks, Methanol Tanks, Firefighting equipment, Plows, Post Pounders, Picker Cranes, Snow grooming equipment, and virtually any other truck mounted equipment.


The AT-50HD's powerful drive and capability to carry a 7,500LB. payload make it ideal for Mineral and Oil exploration, Forest Fire fighting / Wildland fire fighting, Cell tower service, Pipeline maintenance, Environmental and Geo-technical drilling, Rig Support, and virtually any other industry where extreme mobility is necessary.

Specifications


Payload

7500lbs. / 3401 kg


Gross Weight

19000 lbs. / 8618 kg


Curb Weight (approx)

11500lbs. / 6,577 kg


Drive

Hydrostatic


Suspension

Independent torsion axle w/ Oil bath Hubs


Track Width

22” or 32"


Turning Radius

0”/ 0 CM (counter rotation)


Steering

Dual Ergonomic Hydraulic Joysticks


Fuel

Diesel


Horsepower

145HP


Width

78” with 22” track 101” with 32” track


Length

180” / 4.5 M


Height

92” / 2.34 M


Deck size

78” x 102”


Deck height from ground

36”


Ground pressure (loaded)

22" Track - Unloaded 2.0PSI - Fully Loaded -3.4PSI

32" Track - Unloaded 1.4PSI - Fully Loaded -2.4PSI


Max speed

14 Mph / 22.5 km/h


Cab Seating

2 (crew cab or single cab available)


Max Gradient

Side 40% Front 60%


Fording Depth

40”/ 1 M
